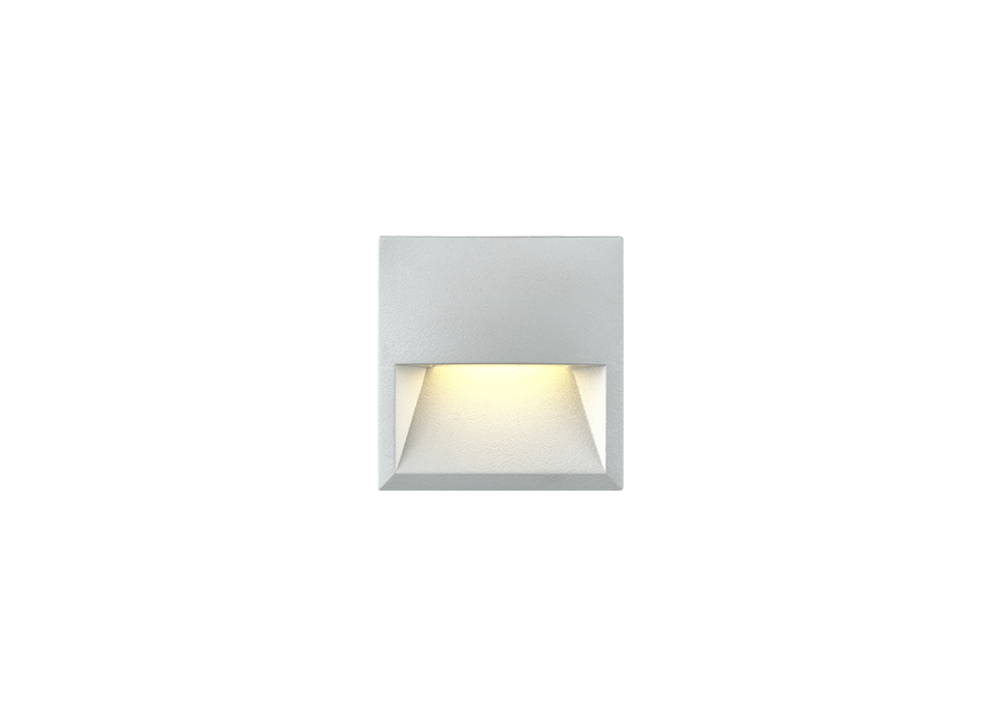

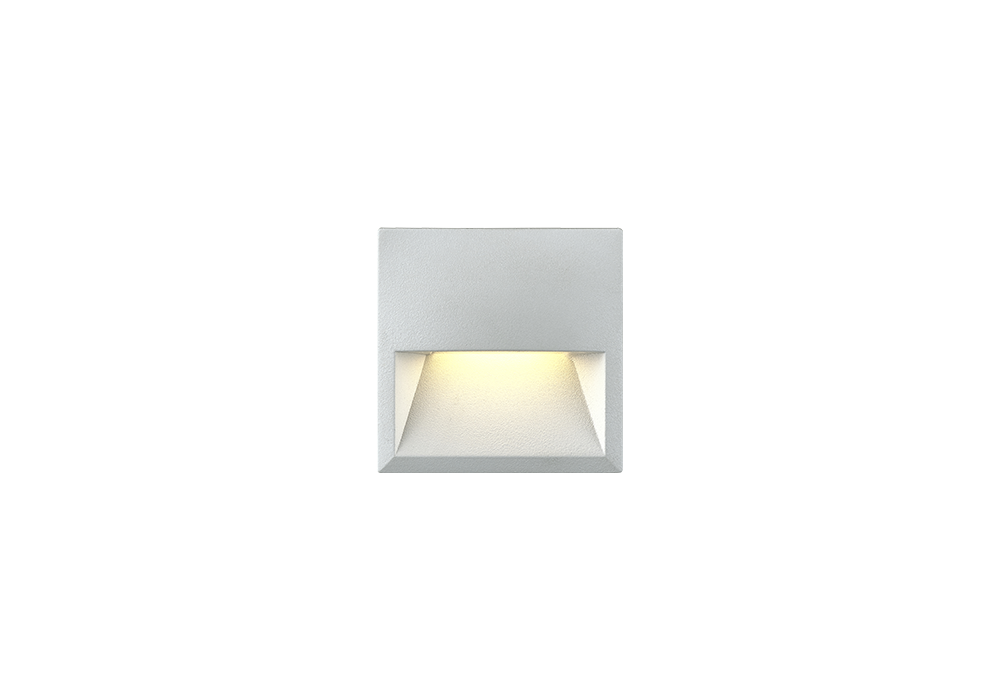

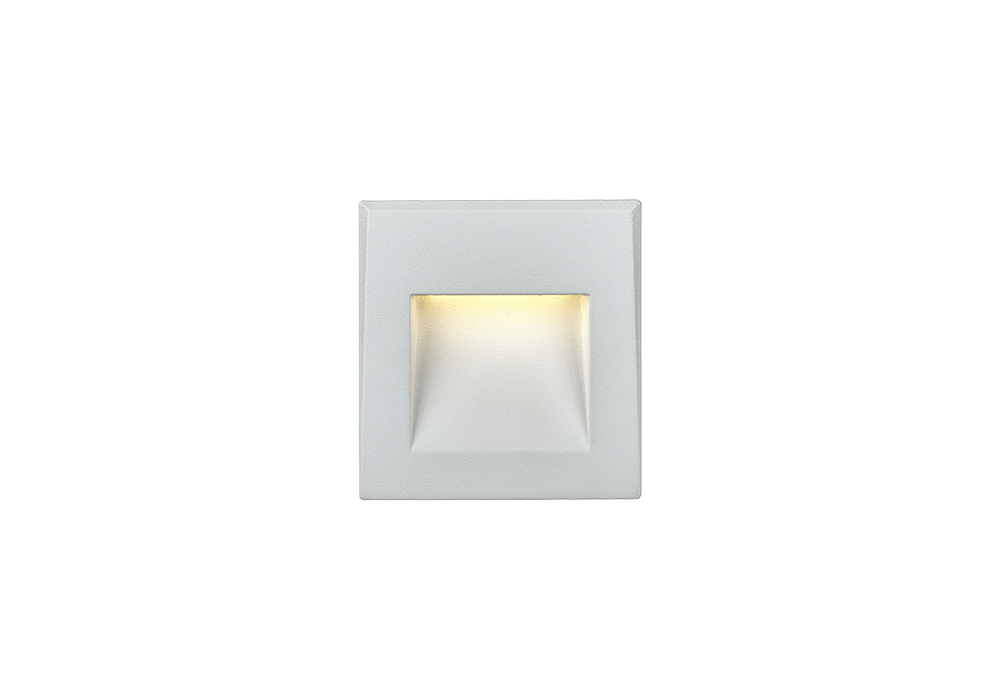

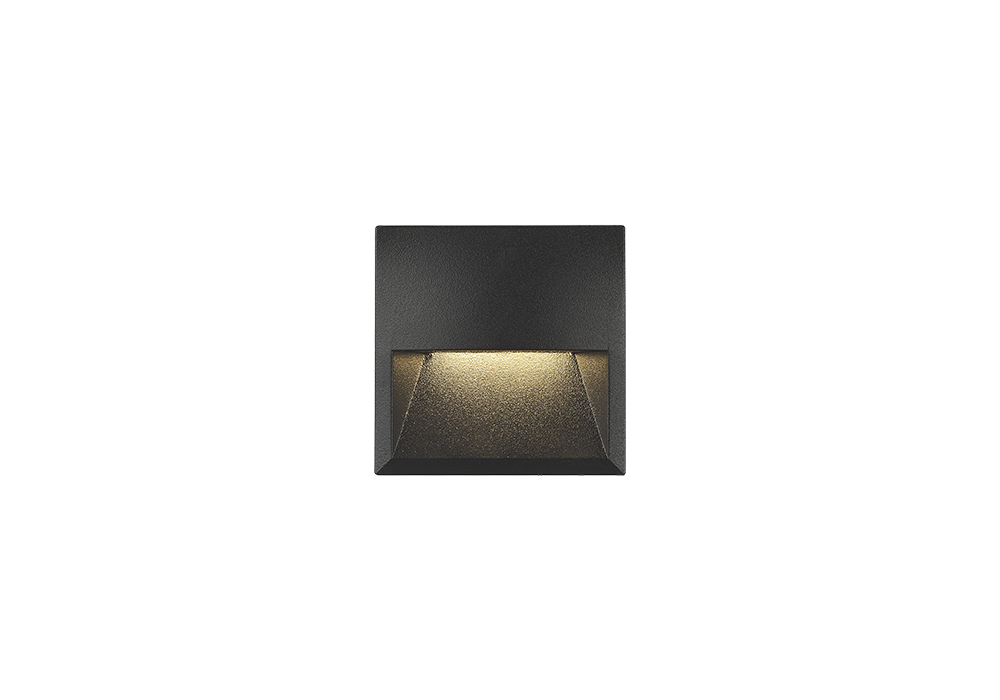

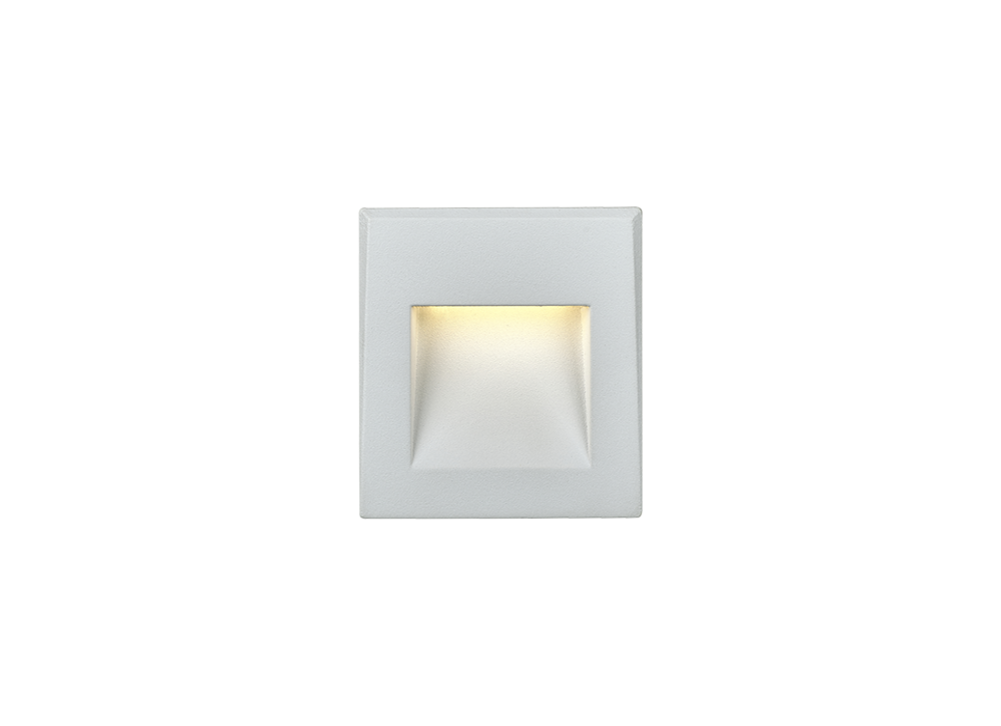

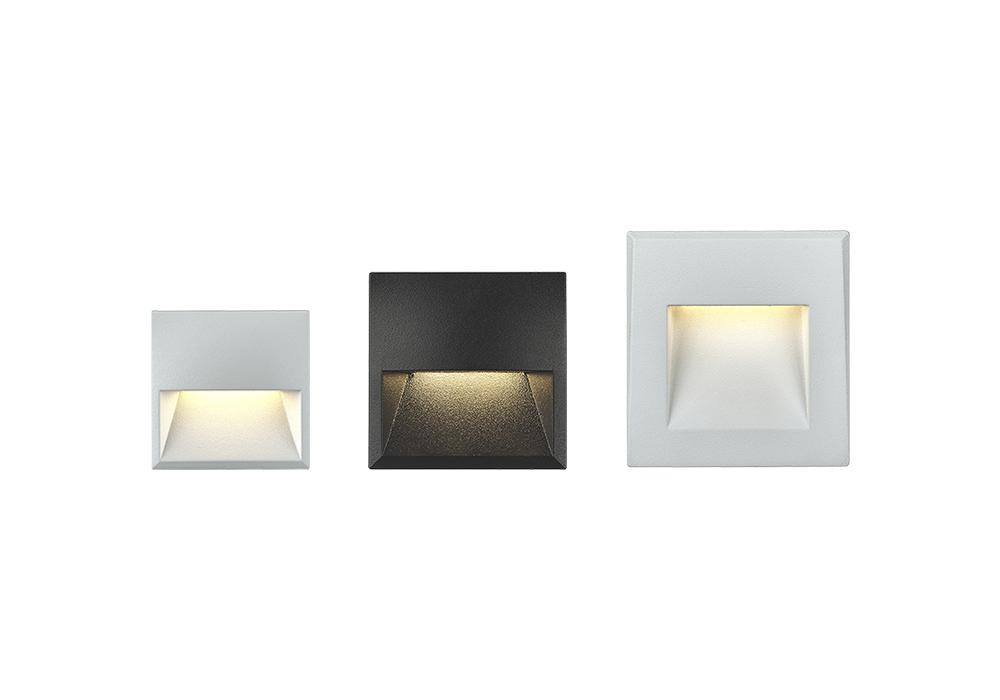

3W Nova series Step lights with square surface and IP65
Litecent mini step light series have different designs with different wattage, IP67 class and We also provide various models to build applications upon your design concept.
- Data Sheet：

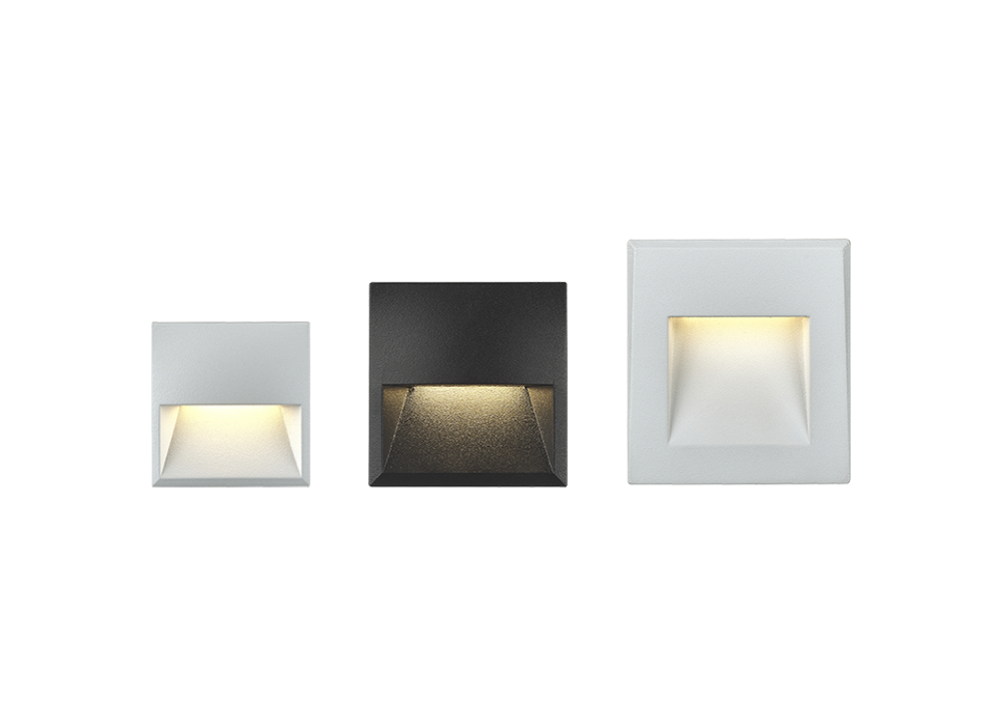

- Model No： STL-NOA1/STL-NOA2/STL-NOA3
- Input Voltage： 24V DC,220V AC
- Rate Power： 3W
- IP Class： IP65
- Beam Angle： 120°
- Color Temp： 2700K,3000K,4000K
- Dimensions： 47*47*48mm/56*56*42mm/66*70*35.7mm
- Package： 1PCS
- Certification： CE,ROHS,CB

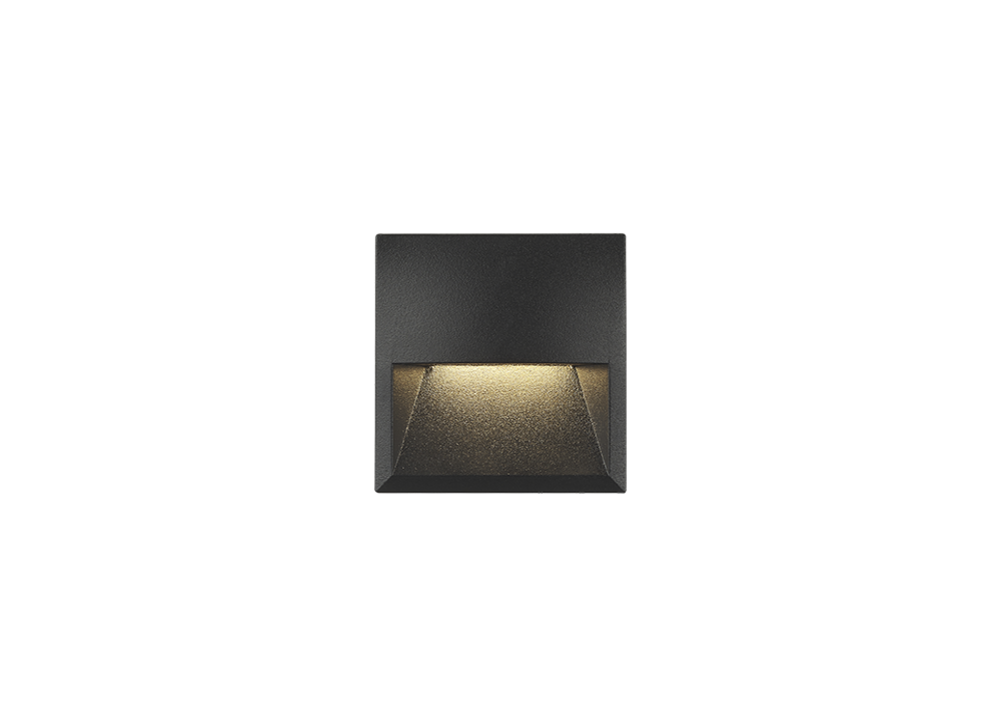

Compact structure with good IP and lK protection management,The face cover offers a variety of color options to match your decoration styleUniformity light output by 2 steps or 3 steps bin selection upon requestFor mass use by stairs, steps, drive ways and kinds of walls decorative function.
MODEL | ► | STL-NOA1 |
OPERATING VOLTAGE | ► | 12V DC,24V DC / 100V-260V AC |
POWER CONSUMPTION | ► | 1.5-3W |
LED TYPE | ► | OSRAM |
COLOR RANGE | ► | 2700K,3000K |
CRI | ► | 90min |
SYSTEM EFFICIENCY | ► | 55 lm/W@3000K |
FWHM | ► | 120° |
MATERIAL | ► | Aluminum |
OPERATING TEMPERATURE | ► | -20°C ~ +55°C |
STORAGE TEMPERATURE | ► | -25°C ~ +60°C |
LIFE TIME | ► | 50,000 hours/L70 at 25°C |
PANEL DIMENSIONS | ► | 47*47*3.9mm |
INSTALATION DIMENSIONS | ► | 45*45*63mm |
INSTALATION HEIGHT | ► | 20-30cm |
WATER PROOF | ► | IP65 |
CONTROL | ► | ON/OFF |
LIST | ► | CB,CE,ROHS |
MODEL | ► | STL-NOA2 |
OPERATING VOLTAGE | ► | 12V DC,24V DC / 100V-260V AC |
POWER CONSUMPTION | ► | 1-3W |
LED TYPE | ► | OSRAM |
COLOR RANGE | ► | 2700K,3000K |
CRI | ► | 90min |
SYSTEM EFFICIENCY | ► | 55 lm/W@3000K |
FWHM | ► | 120° |
MATERIAL | ► | Aluminum |
OPERATING TEMPERATURE | ► | -20°C ~ +55°C |
STORAGE TEMPERATURE | ► | -25°C ~ +60°C |
LIFE TIME | ► | 50,000 hours/L70 at 25°C |
PANEL DIMENSIONS | ► | 56*56*4.5mm |
INSTALATION DIMENSIONS | ► | 53*53*57mm |
INSTALATION HEIGHT | ► | 20-30cm |
WATER PROOF | ► | IP65 |
CONTROL | ► | ON/OFF |
LIST | ► | CB,CE,ROHS |
MODEL | ► | STL-NOA3 |
OPERATING VOLTAGE | ► | 12V DC,24V DC / 100V-260V AC |
POWER CONSUMPTION | ► | 1-3W |
LED TYPE | ► | OSRAM |
COLOR RANGE | ► | 2700K,3000K |
CRI | ► | 90min |
SYSTEM EFFICIENCY | ► | 55 lm/W@3000K |
FWHM | ► | 120° |
MATERIAL | ► | Aluminum |
OPERATING TEMPERATURE | ► | -20°C ~ +55°C |
STORAGE TEMPERATURE | ► | -25°C ~ +60°C |
LIFE TIME | ► | 50,000 hours/L70 at 25°C |
PANEL DIMENSIONS | ► | 66*70*4.7mm |
INSTALATION DIMENSIONS | ► | 60*60*49mm |
INSTALATION HEIGHT | ► | 20-30cm |
WATER PROOF | ► | IP65 |
CONTROL | ► | ON/OFF |
LIST | ► | CB,CE,ROHS |
