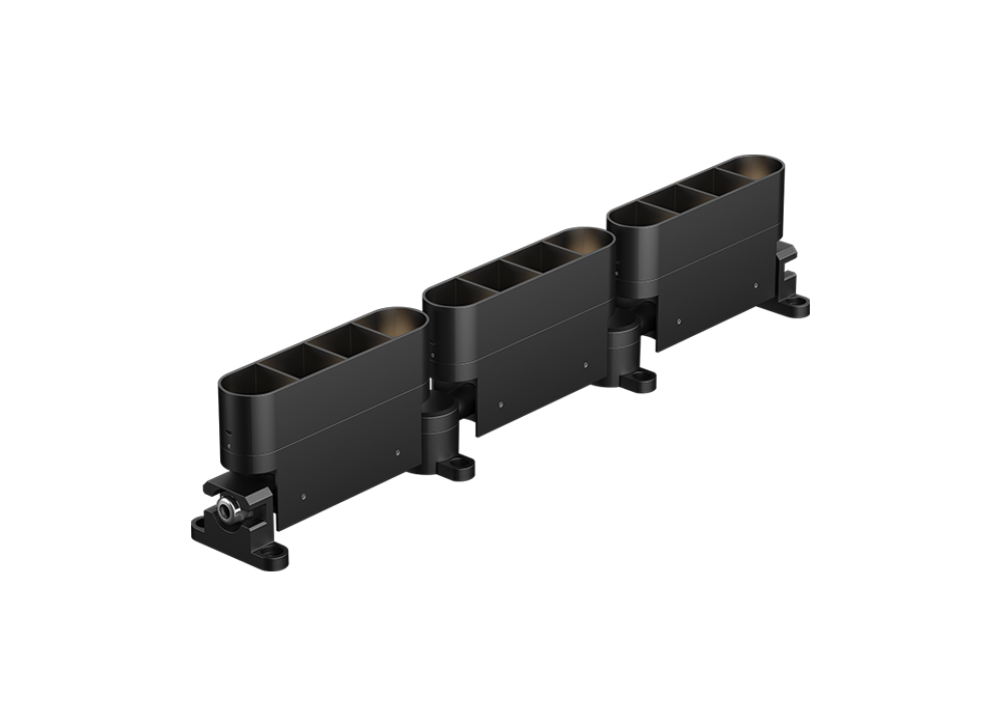

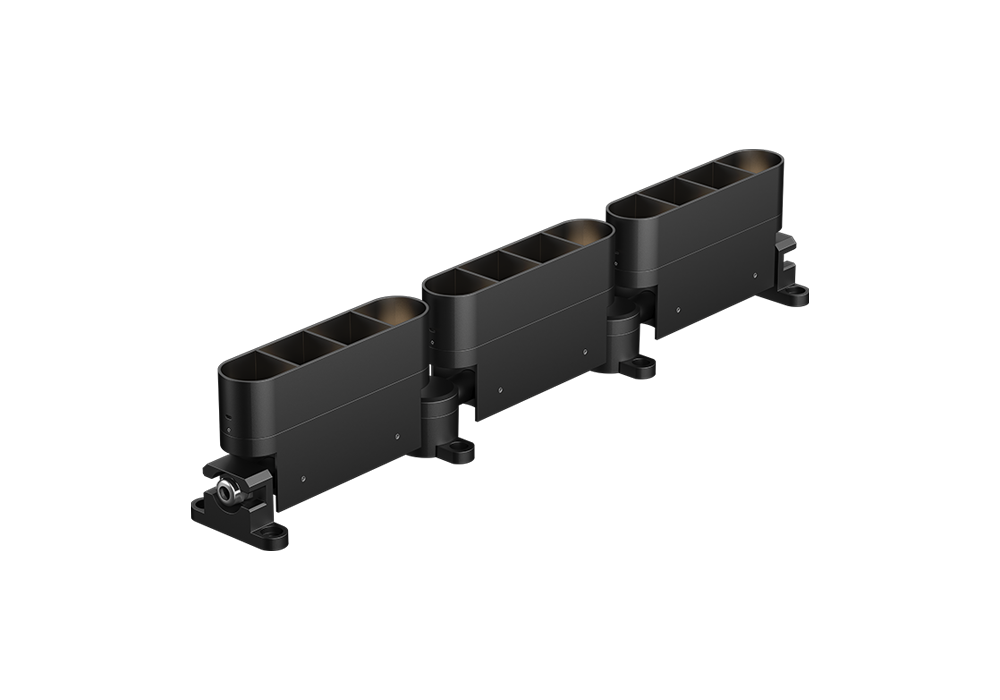

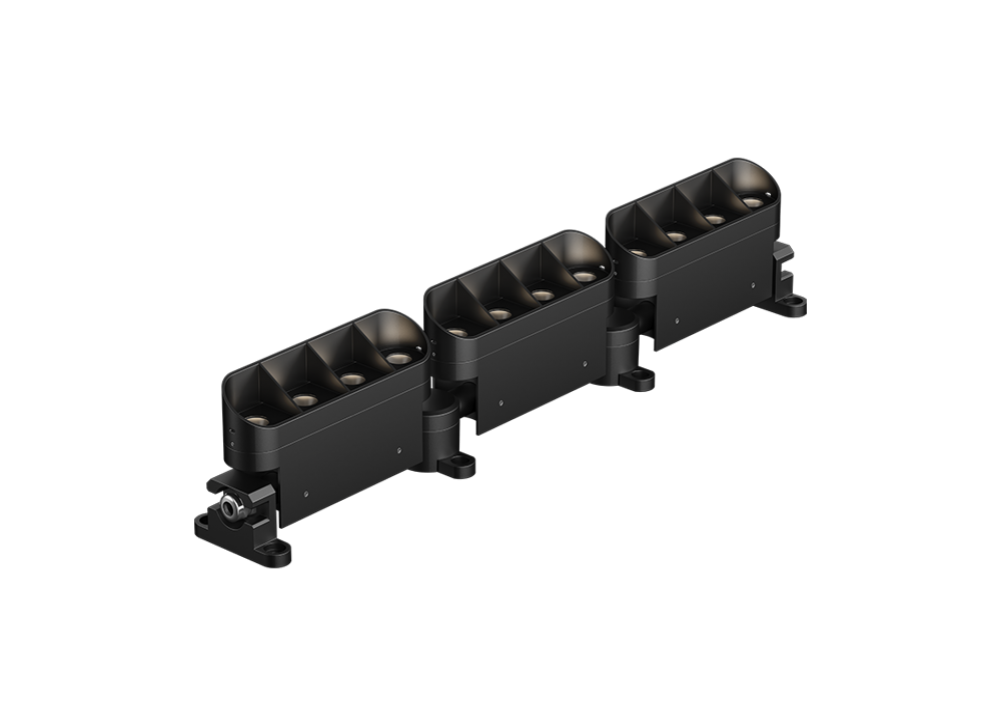

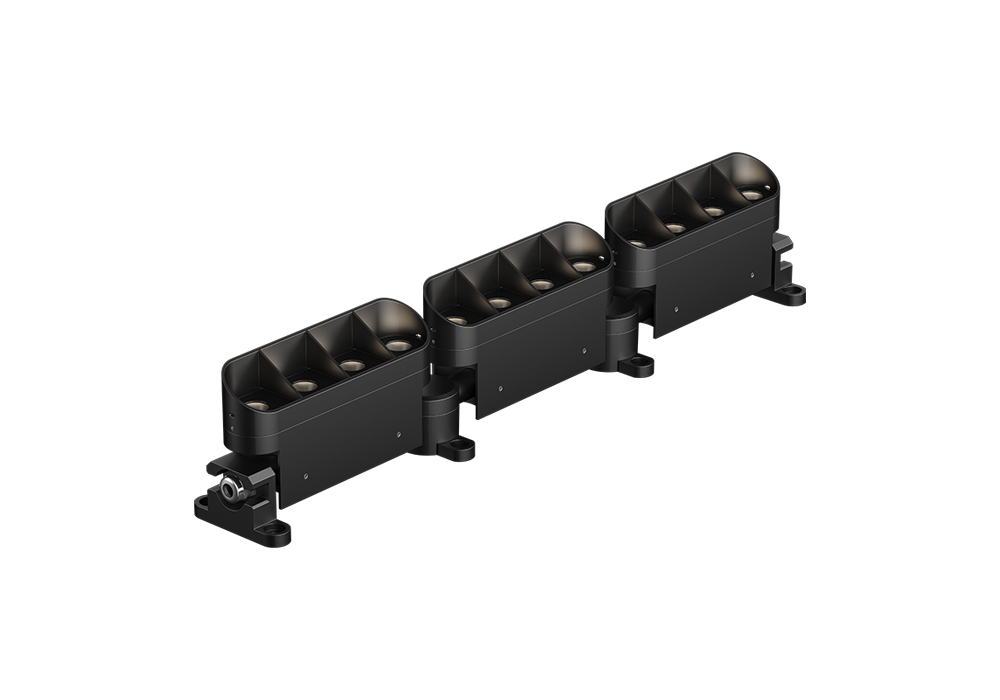

24W Modular 3D flexible LED exterior linear washer graze lighting system with both IP20 and IP66 for indoor and outdoor projects.
The Litecent new ranges led flexible linear facade washer graze flood lights with idealy modern design. They are simple to install and have low energy consumption. Compatible for smart light sytem and DMX512 or RDM systems.
- Data Sheet：
- Model No： WWL-C2410
- Input Voltage： 12V DC,24V DC
- Rate Power： 24W
- IP Class： IP66
- Beam Angle： 10°,25°,40°
- Color Temp： 2700K,3000K,4000K,RGBW
- Dimensions： 506*76*102(H)mm
- Package： 1pcs/ctn
- Certification： CE,ROHS,ETL
Wall Washer Graze Flood Light For Outdoor Facade Lighting Projects
MODEL | ► | WWL-C2410 |
OPERATING VOLTAGE | ► | 12V DC/24V DC |
POWER CONSUMPTION | ► | 24W |
LED TYPE | ► | High Power LED |
COLOR RANGE | ► | 2700K/3000K/4000K |
CRI | ► | 90min/80min |
SYSTEM EFFICIENCY | ► | 120 lm/W@3000K |
FWHM | ► | 12°/20°/12° tile 2°/12°x44° |
MATERIAL | ► | High purity aluminum + Tempered glass |
COLOR | ► | White/Black |
OPERATING TEMPERATURE | ► | -20°C ~ +55°C |
STORAGE TEMPERATURE | ► | -25°C ~ +60°C |
LIFE TIME | ► | 50,000 hours/L70 at 25°C |
CONNECTION | ► | Quick-Plug (Option) |
DIMENSIONS | ► | 506*76*102(H)mm |
WATER PROOF | ► | IP66 |
CONTROL | ► | ON/OFF |
LIST | ► | CE & ROHS |
