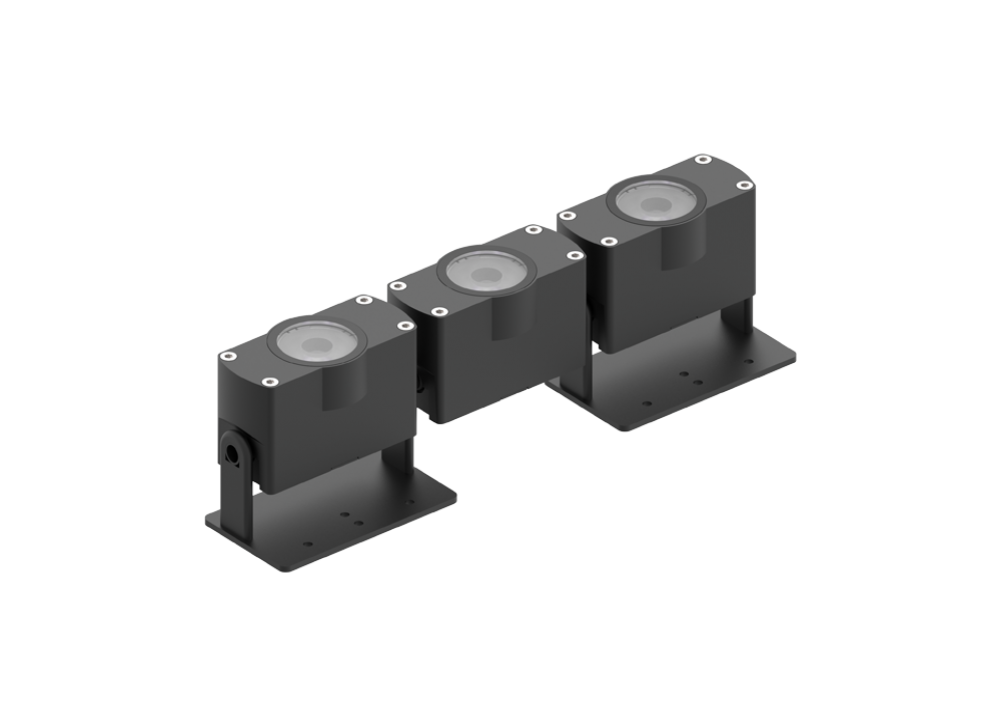

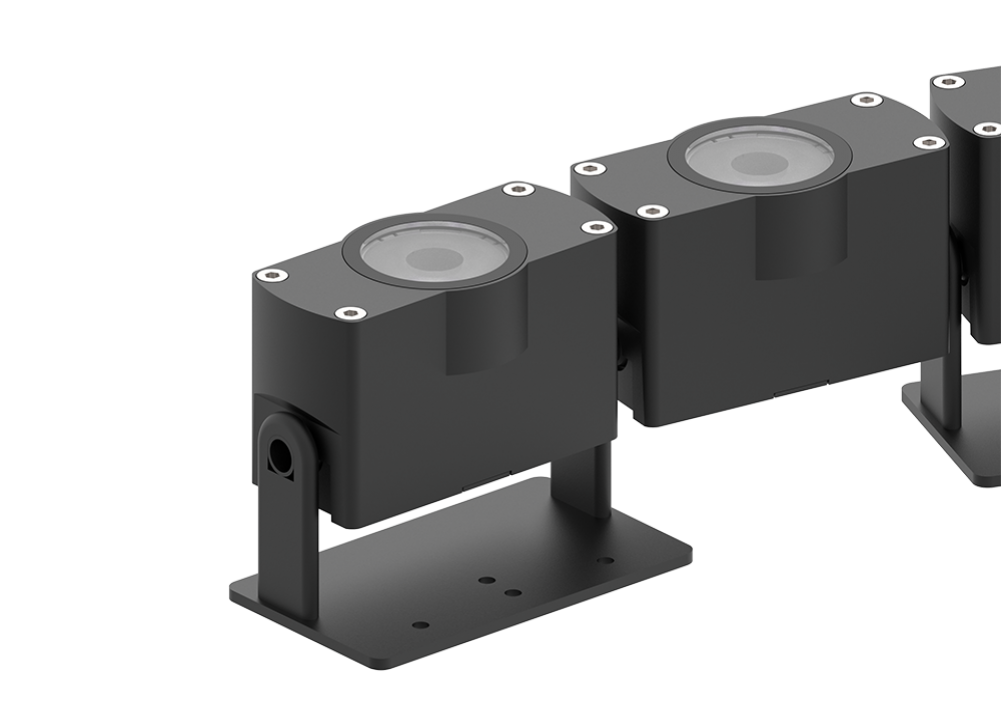

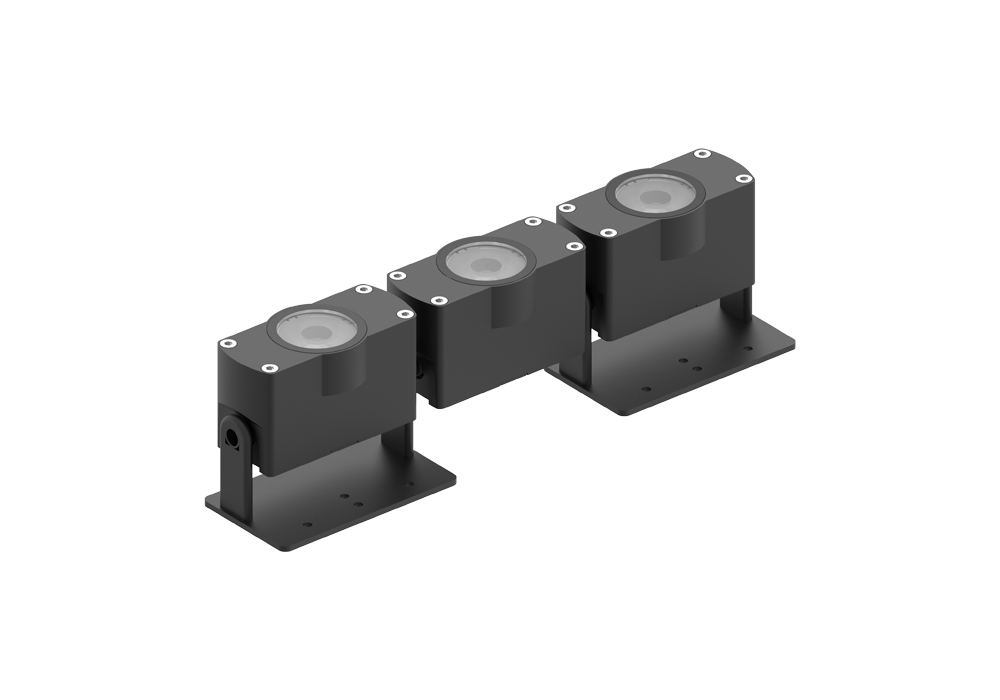

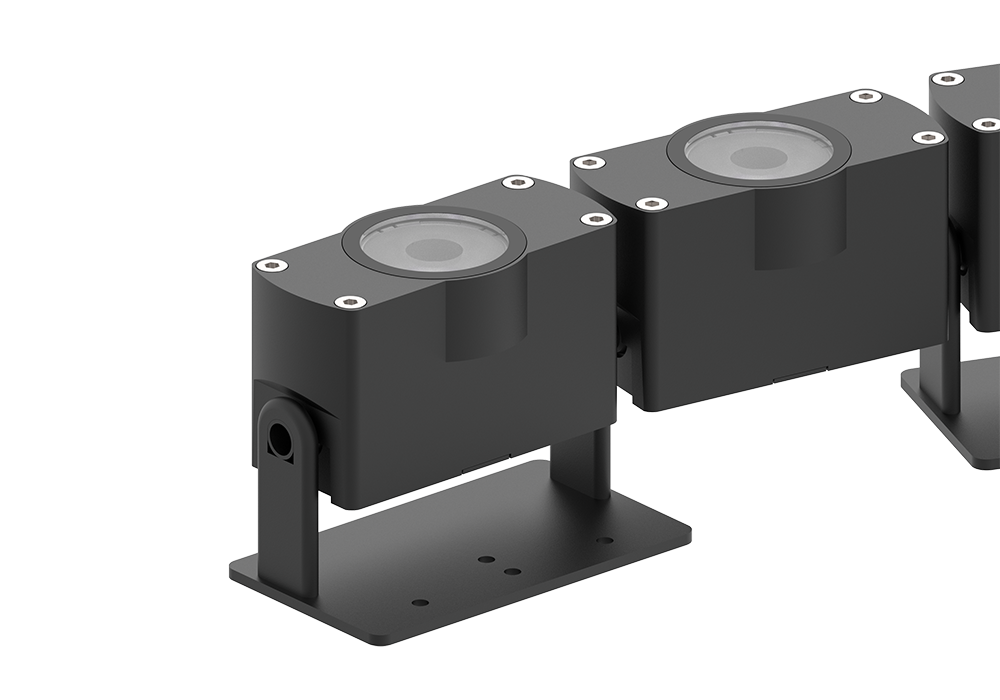

15W Modular 3D flexible LED exterior linear washer graze lighting system.
The Litecent new ranges led flexible linear facade washer graze flood lights with idealy modern design. They are simple to install and have low energy consumption. Compatible for smart light sytem and DMX512 or RDM systems.
- Data Sheet：
- Model No： WWF-RDO2
- Input Voltage： 24V DC
- Rate Power： 15W
- IP Class： IP66
- Beam Angle： 10°/ 15°/ 30°/ 10x30°
- Color Temp： 3000K,4000K,5000K,RGB,RGBW
- Dimensions： 295x48x82mm
- Package： 1PCS
- Certification： CE

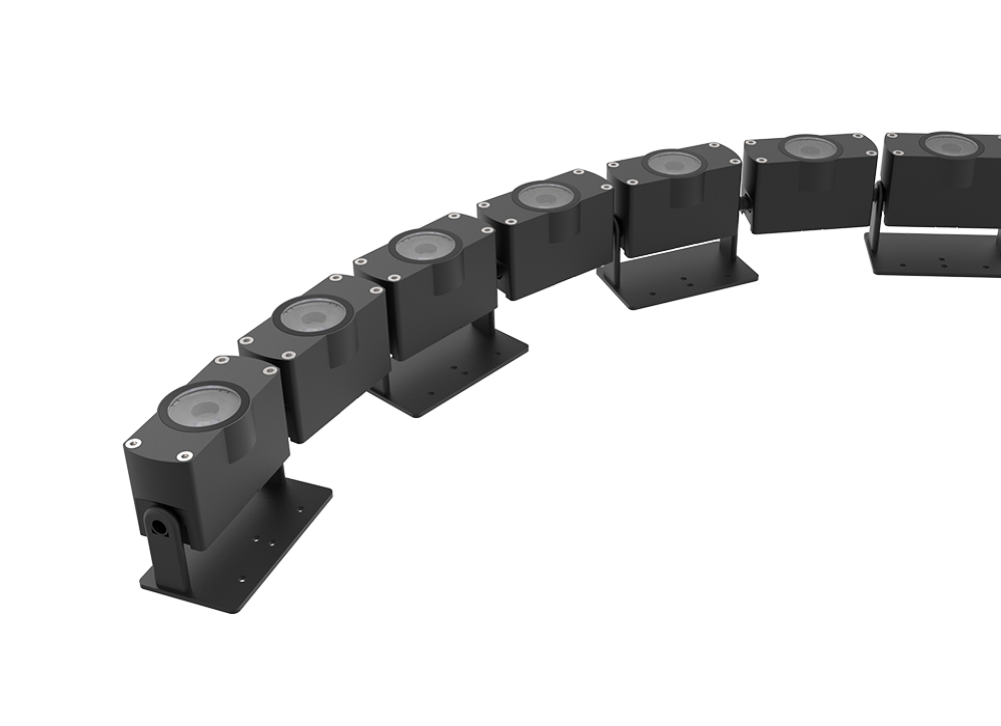

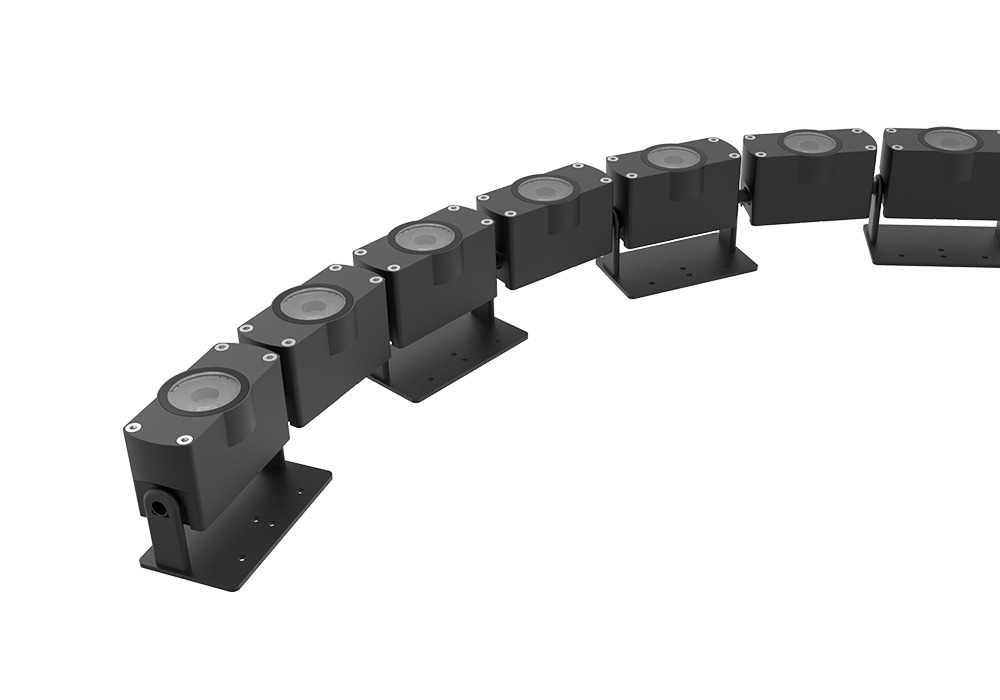

Outdoor 3D flexible linear wall washer grazer light breaks the constraints of traditional wall washers. lt changes shapes flexibly, such as round, right corer and S-shapes, which can be easily realized according to project needs. lnfinite extendability also allows it for more possibilities.
MODEL | ► | WWL-C2410 |
OPERATING VOLTAGE | ► | 12V DC/24V DC |
POWER CONSUMPTION | ► | 24W |
LED TYPE | ► | High Power LED |
COLOR RANGE | ► | 2700K/3000K/4000K |
CRI | ► | 90min/80min |
SYSTEM EFFICIENCY | ► | 120 lm/W@3000K |
FWHM | ► | 12°/20°/12° tile 2°/12°x44° |
MATERIAL | ► | High purity aluminum + Tempered glass |
COLOR | ► | White/Black |
OPERATING TEMPERATURE | ► | -20°C ~ +55°C |
STORAGE TEMPERATURE | ► | -25°C ~ +60°C |
LIFE TIME | ► | 50,000 hours/L70 at 25°C |
CONNECTION | ► | Quick-Plug (Option) |
DIMENSIONS | ► | 506*76*102(H)mm |
WATER PROOF | ► | IP66 |
CONTROL | ► | ON/OFF |
LIST | ► | CE & ROHS |
